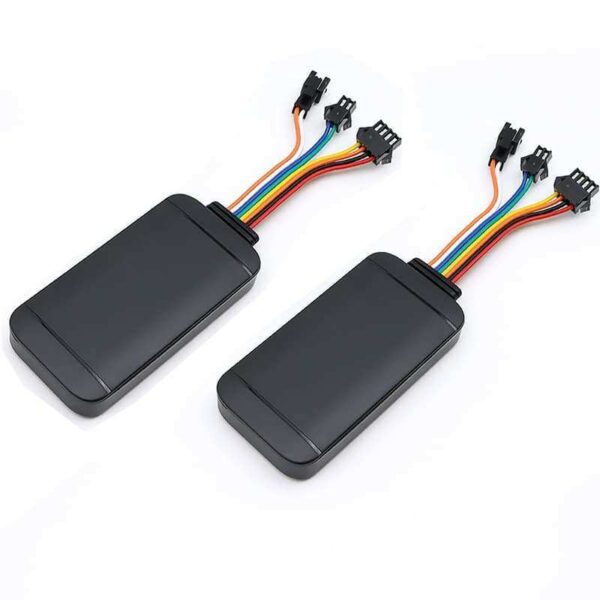

GPS Locator With Accurate Location

gps locator with accurate location Introduction：

gps locator with accurate location can do the perfect real time tracking. There are multiple alerts for vibration, overspeed, power disconnected, geo-fence, route, sos etc. With ACC ignition detection and check location via Platform, APP and SMS,  the vehicle status is all under your control.

gps locator with accurate location Specifications

●Wireless Specifications:

Wireless communication: 2G/LTE-Cat.M1

Communication Module: BG96 4G LTE Cat.M1/ NB1/ EGPRS

LTE Frequency Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B39(B39 for Cat.M1only)

EGPRS Frequency Bands: 850/900/1800/1900MHz

●GPS Specification：

GPS Chipset: U-blox UBX-M8030KT

Antenna type：Patch 25x25x4

Satellite system: GPS, Galileo, GLONASS, Beidou

GPS location accuracy: 5m

Location time cost: Hot start: <1sec (Open Sky)

Cold start: <30sec (Open Sky)

●Power System Specification:

Voltage input range: 8-45V

Working current: <30mA

Surge Protection: 1500W

Battery capacity: 100mAh

●Working environment:

Operating temperature: -20 ºC to +70 ºC

Humility: 20%-80%

●Physical:

Size: 84 (L) x42 (W) x13.6 (H) mm

Weight: 80g

gps locator with accurate location Features

2G/4G LTECat.M1 communication module.
The latest high performance GNSS chip from ublox.
Realtime location report to server
Ideal tracking application for car/truck/motorcycle
Check location via Platform, APP and SMS.
GNSS assist positioning
ACC ignition detection
SOS button for SOS alarm
Voice recording function
External power disconnect alarm for antitheft
Remotely stop/ restore engine
Remove alarm base on light sensor detection
